20th September 2015 / Double Pendulum Clock with Wandering Moon & Night Sky Planisphere (Read More)

Description;

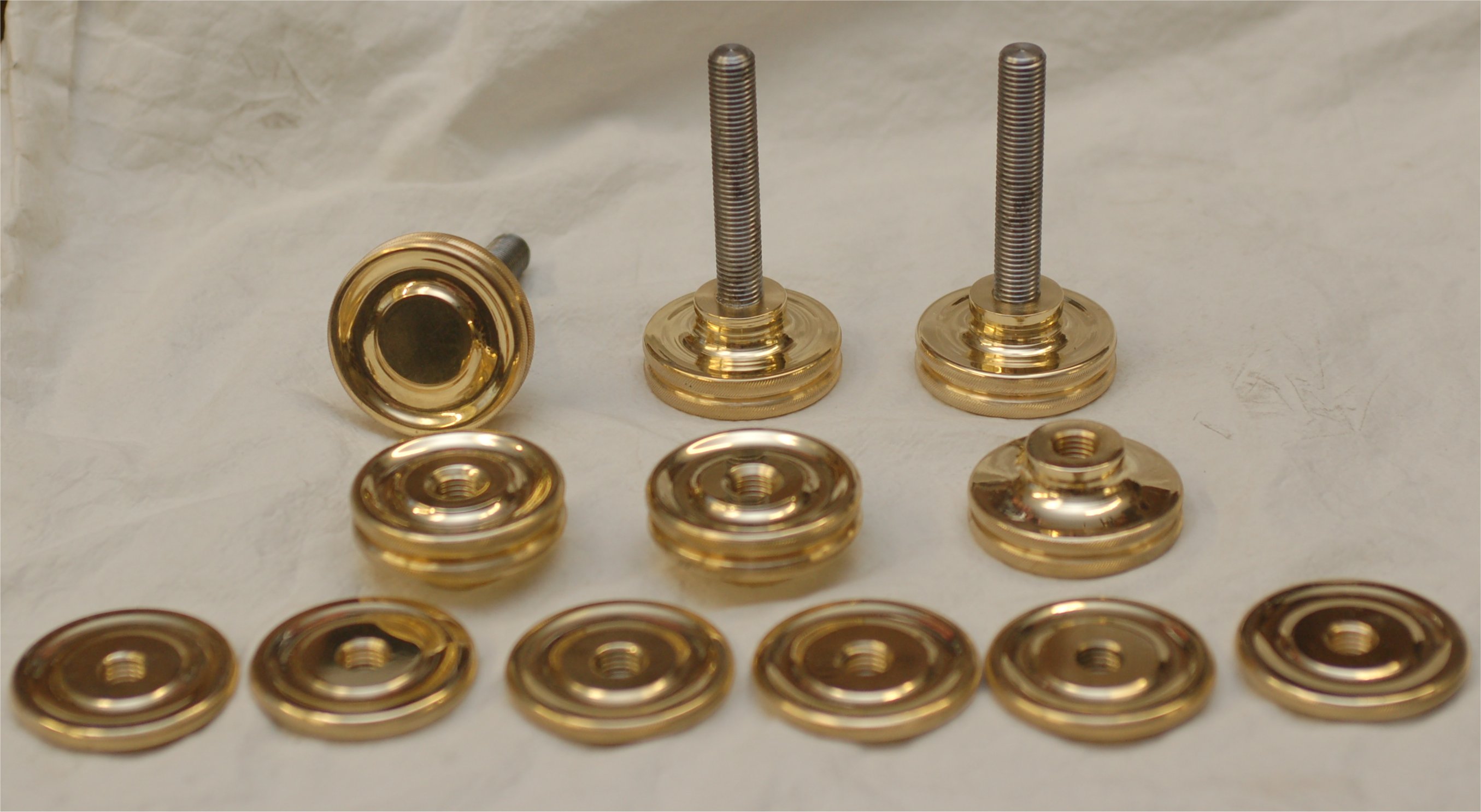

Movt. Plate screws;
these adjusting screws are used to set the movements level in two planes, once set the locking screws will clamp the front movement plate in place.

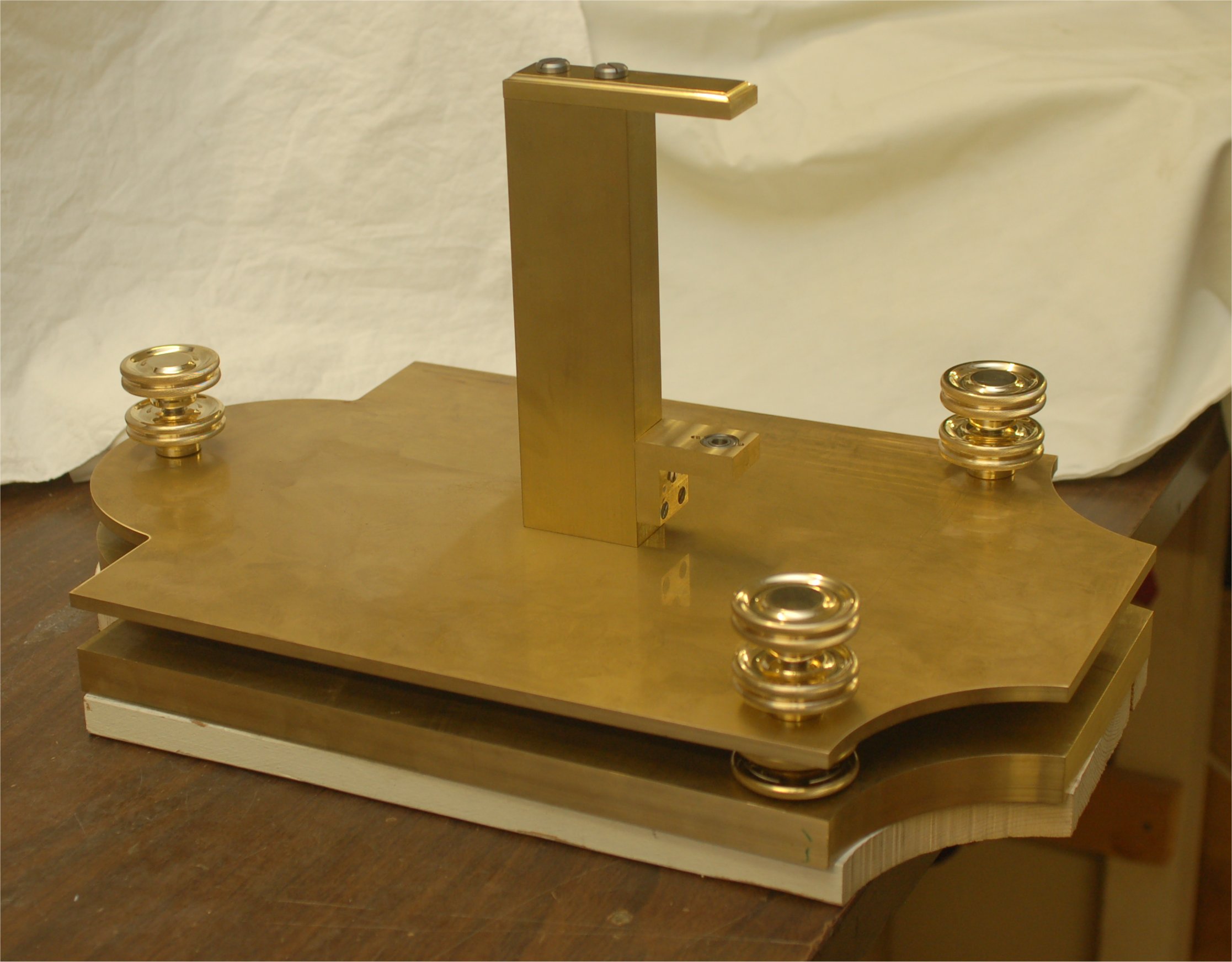

Support plates;
The plates with the adjusting screws fitted in location and the suspension bracket has been fitted.

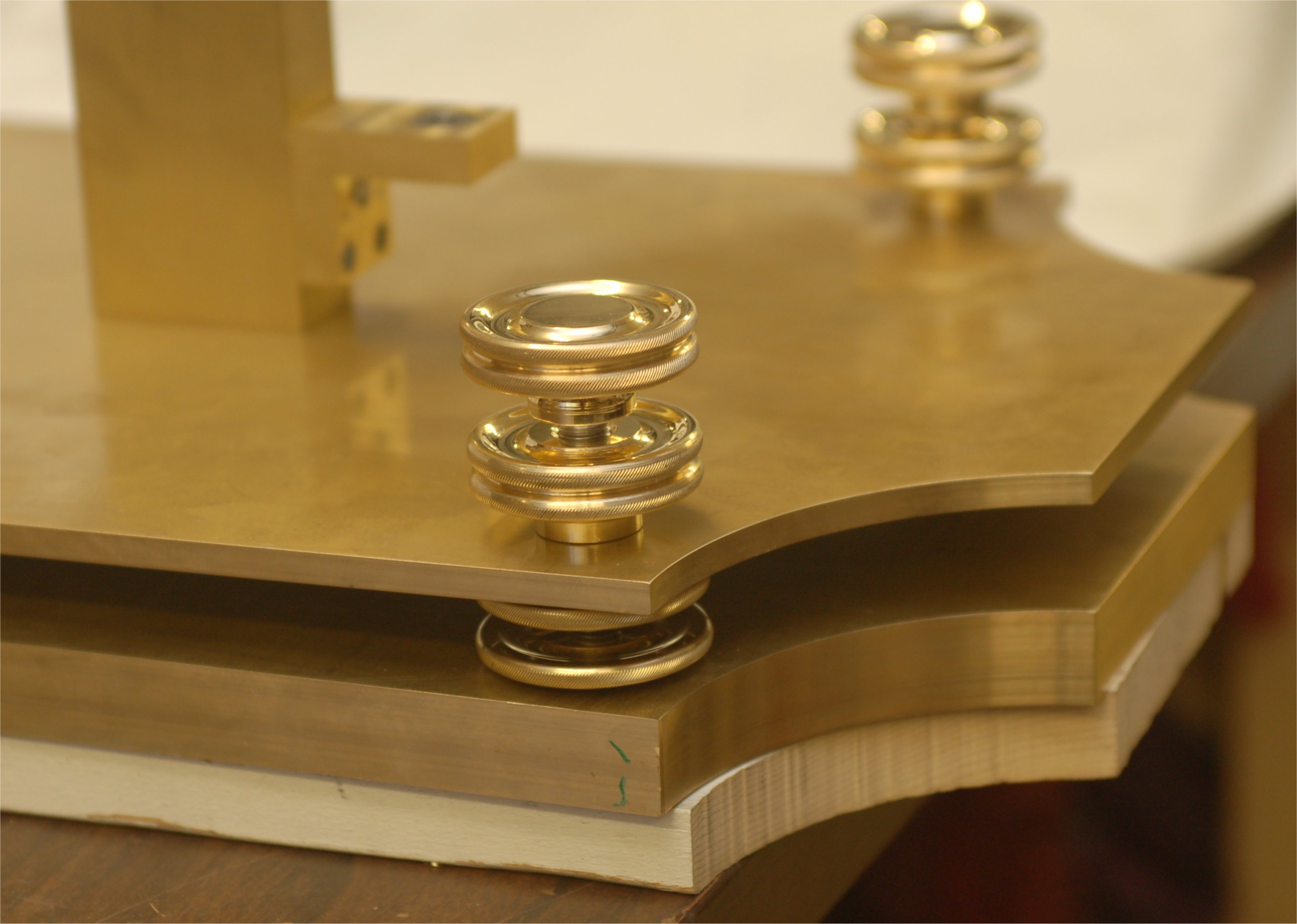

Adjusting screws;
Shows where the lock nuts work in place against the two plates.
